2 phase NEMA 17 Stepping Motor 1.0A 0.45N.m for Computer Peripherals

Name: 2 phase NEMA 17 Stepping Motor 10A 045Nm for Computer Peripherals
Brand: Casun
Price: 3.14 USD

Quality 2 phase NEMA 17 Stepping Motor 1.0A 0.45N.m for Computer Peripherals wholesale

Brand Name : Casun

Model Number : 42SHD0238-20B

Certification : CE,ROSH,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $3.14-$5

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 450mN.m

Current : 1.0A

Motor Length : 40mm

Shaft : Milling Flat Shaft 20mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

It can be adjusted by controlling the frequency of the input pulse to achieve wide range speed control from extremely low speed to high speed.

Automated production lines, robotics technology, precision instruments, medical equipment, computer peripherals, etc.

Features:

Bipolar or unipolar versions available
Specialist in professional drivetrain solutions
Available in single or double shaft versions
CE and RoHS approved
Our engineers will contact you within 48 hours to provide the best solution

Appearance

2 phase NEMA 17 Stepping Motor 1.0A 0.45N.m for Computer Peripherals

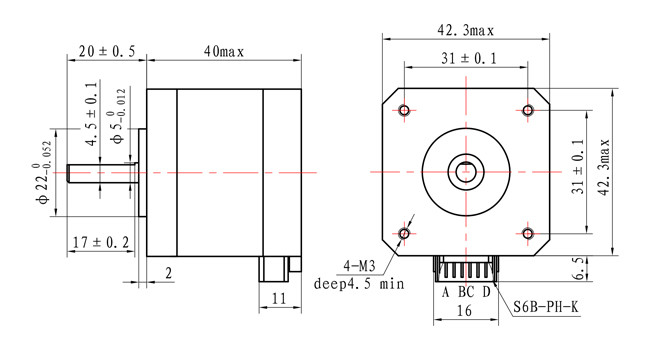

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.0 A
Holding Torque	450 mN.m
Resistance	5.0 ohm
Inductance	10.0 mH
Rotor Inertia	57 g-cm²
Motor weight	0.24 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
