30mm Length Micro Stepper Motor Nema 8 15mN.M Customizable Products

Name: 30mm Length Micro Stepper Motor Nema 8 15mNM Customizable Products
Brand: Casun
Price: 5 USD

Quality 30mm Length Micro Stepper Motor Nema 8 15mN.M Customizable Products wholesale

Brand Name : Casun

Model Number : 20SHD0001-20

Certification : CE,ROSH,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $5-$10

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 15mN.m

Current : 0.6A

Motor Length : 30mm

Shaft : Round Shaft 20mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

30mm Length Micro Stepper Motor Nema 8 15mN.M Customizable Products

Micro stepper motor Nema 8 15mN.m customizable products with high quality. 20x20x33mm 0.6A Casun Stepper Motor Nema 8 mini stepper motor for medical beauty equipment.

Motor Specifications

Step Angle	1.8°
Frame Size	20 mm
Number of Phase	2 Phase
Rated Current	0.65 A
Holding Torque	15 mN.m
Resistance	6.5 ohm
Inductance	1.7 mH
Rotor Inertia	2 g·cm²
Motor Weight	0.08 kg
Number of Leads	4
Connection	Bipolar

Appearance

30mm Length Micro Stepper Motor Nema 8 15mN.M Customizable Products

Motor Appearance

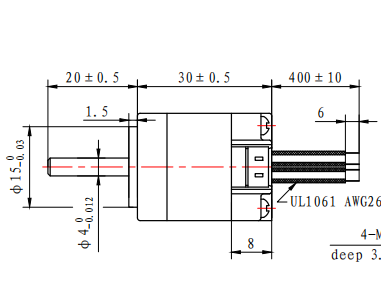

Dimensions

Motor Dimensions

Download

Technical documentation and specifications available for download.

Customization Services

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Available Options

Encoder

Brake

Gearbox

Connector

Please click the button below to tell us your requirements.

Get a Quote
