8686149mm NEMA 34 Hybrid Stepping Motor 12N.M With Laser Cutting Machine

Name: 8686149mm NEMA 34 Hybrid Stepping Motor 12NM With Laser Cutting Machine
Brand: Casun
Price: 9.49 USD

Quality 86*86*149mm NEMA 34 Hybrid Stepping Motor 12N.M With Laser Cutting Machine wholesale

Brand Name : Casun

Model Number : 86SHD4508-34H

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $9.49-$14

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angle : 1.8°

Number of phase : 2

Rated current : 6.0A

body : 149mm

Customized : The motor can be designed &manufactured with customized request.

Contact Now

86×86×149mm NEMA 34 Hybrid Stepping Motor 12N.M With Laser Cutting Machine

The NEMA 34 stepper motor offers excellent adaptability for various working environments and application requirements. It delivers outstanding performance when driving high loads or applications with demanding torque requirements.

Key Features

Bipolar or unipolar versions available
Customized services and contract manufacturing options
Suitable for various applications across different models
Dealer partnerships available
Customizations available upon request

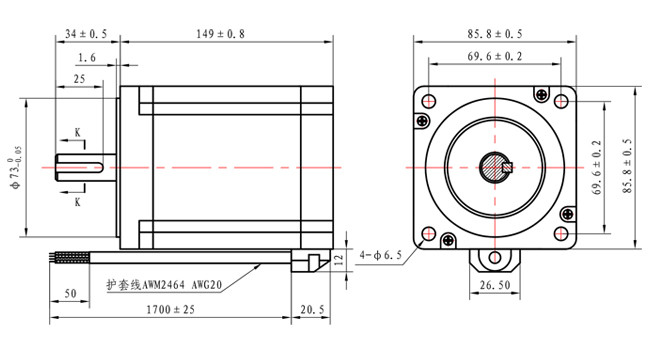

Dimensions

86*86*149mm NEMA 34 Hybrid Stepping Motor 12N.M With Laser Cutting Machine

Motor Specifications

Specification	Value
Step Angle	1.8°
Frame Size	86 mm
Number of Phase	2 Phase
Rated Current	6.0A
Holding Torque	12N.m
Resistance	1.0 ohm
Inductance	5 mH
Rotor Inertia	3600 g-cm²
Motor Weight	5.0 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°
Maximum Temperature: 80°C maximum
Ambient Temperature: -20°C to 50°C
Storage Temperature: -20°C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130°C
Insulation Resistance: 100M Ohm at 500 VDC
Dielectric Strength: 500 VDC for 1 min

Available Models

Model	Holding Torque	Step Angle	Length	Shaft Type	Rated Current
86SHD4003-32	4.0N.m	1.8°	69mm	Key Shaft-32mm	4.0A
86SHD4101-32	4.5N.m	1.8°	76mm	Key Shaft-32mm	4.0A
86SHD4201-37	5.6N.m	1.8°	98mm	Key Shaft-37mm	4.0A
86SHD4314-37	6.8N.m	1.8°	112mm	Key Shaft-37mm	5.0A
86SHD4404-37	8.0N.m	1.8°	127mm	Key Shaft-37mm	5.0A
86SHD4505-37	12.0N.m	1.8°	150mm	Key Shaft-37mm	5.5A

Customization Services

If our standard motor cannot meet your requirements, we can customize the motor according to your specific needs. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Available Options

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements.
