18mNm 20mm Micro NEMA 8 Geared Stepper Motor DC Miniature Step Motor

Name: 18mNm 20mm Micro NEMA 8 Geared Stepper Motor DC Miniature Step Motor
Brand: Casun
Price: 24.6 USD

Quality 18mNm 20mm Micro NEMA 8 Geared Stepper Motor DC Miniature Step Motor wholesale

Brand Name : Casun

Model Number : B20SHD6054-14G2

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $24.6-$28.6

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Key words : Geared Stepper Motor

Voltage : 5.75V DC

Step angle(degrees) : 1.8 Degree

Ratio : 14:1

Customized : The motor can be designed &manufactured with customized request.

Contact Now

18mNm 20mm Micro NEMA 8 Geared Stepper Motor

This micro DC geared stepper motor offers a compact NEMA 8 frame size with powerful performance. The hybrid stepper motor series provides substantial holding torque in various configurations. When paired with a microstepping driver, it delivers reduced vibration and enhanced step resolution. Available in standard versions or customizable configurations to meet specific application requirements.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations available upon request

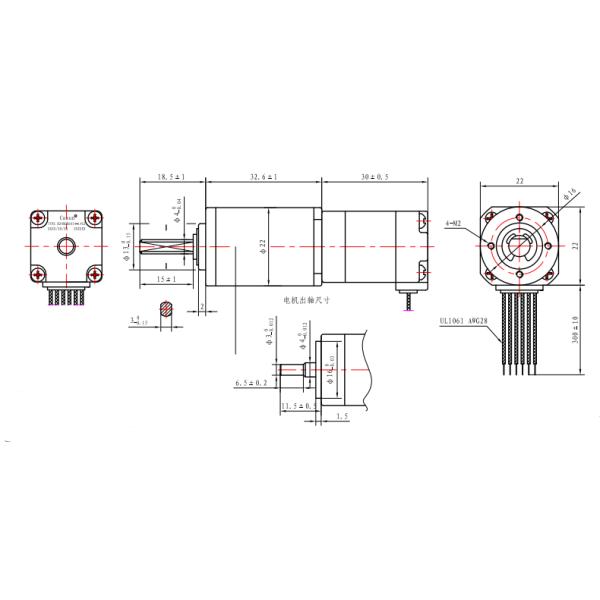

Dimensions

18mNm 20mm Micro NEMA 8 Geared Stepper Motor DC Miniature Step Motor

Motor Specifications

Step Angle	1.8°
Frame Size	20mm
Number of Phase	2 Phase
Rated Current	0.5Amp
Holding Torque	18mN.m
Resistance	11.5ohm
Inductance	1.7mH
Rotor Inertia	2g-cm²
Motor Weight	0.1kg
Gear Reduction Ratio	14:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Gear Box

Housing Material	Metal
Bearing at Output	Ball Bearings
Max. Radial Load (12mm from flange)	≤80N
Max. Shaft Axial Load	≤30N
Radial Play of Shaft (near to Flange)	≤0.06mm
Axial Play of Shaft	≤0.3mm
Backlash at No-load	1.5°

Submodels

Motor Length	Length of Gearbox	Ratio	Efficiency
34 mm	27.2 mm	3.71	90%
40 mm		5.18	35 mm
48 mm		13.76	80%
60 mm		19.2	26.8
42.7 mm	51	70%	71

Custom Motor Solutions

If our standard motor cannot meet your requirements, we can customize the motor according to your specific needs.

Customization Options Include:

Special shafts and shaft configurations
Custom winding parameters
Modified installation dimensions
Lead wires with special requirements
Custom connectors and terminations

Available Options

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your specific requirements.
