Micro Nema 17 Ball Screw Slider Rail With Nema 17 Hybrid Stepper Motors CE RoHS Certifications

Name: Micro Nema 17 Ball Screw Slider Rail With Nema 17 Hybrid Stepper Motors CE RoHS Certifications
Brand: Casun
Price: 1 USD

Quality Micro Nema 17 Ball Screw Slider Rail With Nema 17 Hybrid Stepper Motors CE RoHS Certifications wholesale

Brand Name : Casun

Model Number : SGX-45-16

Certification : CE, ISO, ROHS

Place of Origin : China

MOQ : 1pcs

Price : US $30.00 - 68.00/ Piece

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100000/pcs per month

Delivery Time : 15 workdays

Packaging Details : Carton:36x29x14cm

Name : Nema 17 ball screw slider rail

Type : Ball screw

Length : 100/150/200/300/400mm

Engineer : Nema 17

Diameter : 16mm

Customized : The motor can be designed &manufactured with customized request.

Contact Now

Micro Nema 17 Ball Screw Slider Rail With Nema 17 Hybrid Stepper Motors

This NEMA 17 ballscrew linear slider rail with stepper motor features CE and RoHS certifications, offering high precision, high torque output, excellent response speed, and reliable performance. The simple control method makes integration into various systems straightforward.

Key Features

High torque and precision performance
Ideal for high-tech and electronic industry equipment
Engineering support within 48 hours for optimal solutions
Combines high torque with precision delivery
Personalized services and contract manufacturing available

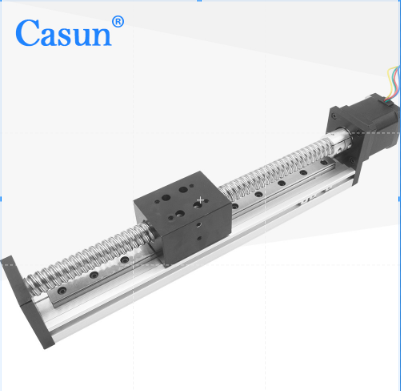

Appearance

Micro Nema 17 Ball Screw Slider Rail With Nema 17 Hybrid Stepper Motors CE RoHS Certifications

Operating Specifications

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20°C to 50°C

Storage Temperature: -20°C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130°C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

If our standard motor cannot meet your requirements, we can customize the motor according to your specific needs. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Available Options

Encoder

Brake

Gearbox

Shaft
