1.8 Degree 2 Phase NEMA 14 Flat Stepper Motor 70mN.M 0.3A For SMT Machine

Name: 18 Degree 2 Phase NEMA 14 Flat Stepper Motor 70mNM 03A For SMT Machine
Brand: Casun
Price: 4.14 USD

Quality 1.8 Degree 2 Phase NEMA 14 Flat Stepper Motor 70mN.M 0.3A For SMT Machine wholesale

Brand Name : Casun

Model Number : 36SHD4301-11B1

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $4.14-$6.98

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 70mN.m

Current : 0.3A

Motor Length : 15.3mm

Shaft : Milling Flat Shaft 11mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

1.8 Degree 2 Phase NEMA 14 Flat Stepper Motor 70mN.M 0.3A For SMT Machine

This stepper motor adopts a step-by-step operation method, delivering exceptional motion accuracy to meet high-precision requirements. Its compact design makes it ideal for applications with limited space constraints.

Key Features

Contract manufacturing services available
Specialized services offered
Available in single or double shaft versions
Tailored service options
12 years of operation in China with over 800 satisfied customers

Motor Specifications

Step Angle	1.8°
Frame Size	36 mm
Number of Phase	2 Phase
Rated Current	0.3 A
Holding Torque	70 mN.m
Resistance	15.5 ohm
Inductance	7.0 mH
Rotor Inertia	4 g-cm²
Motor Weight	0.06 kg
Number of Leads	4
Connection	Bipolar

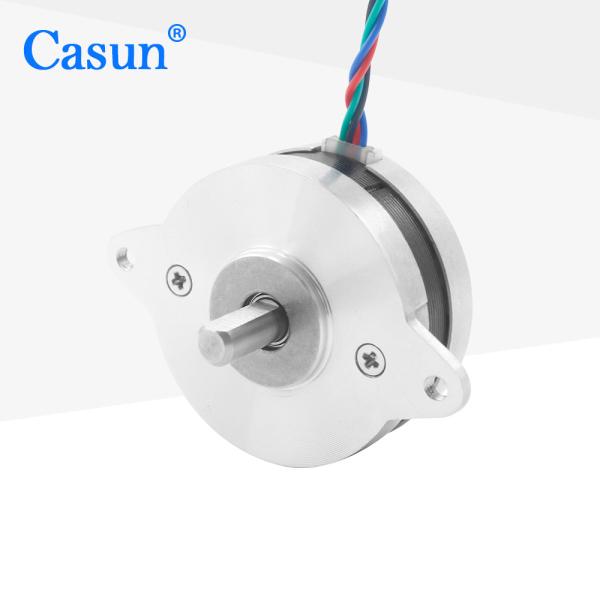

Appearance

1.8 Degree 2 Phase NEMA 14 Flat Stepper Motor 70mN.M 0.3A For SMT Machine

Dimensions

Torque Curves

Torque curve data available upon request.

Custom Motor Solutions

If our standard motor cannot meet your requirements, we can customize the motor according to your specific needs.

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Available Options

Encoder

Brake

Gearbox

Connector

Please click the button below to tell us your requirements and receive a customized quote.
