76mm NEMA 23 Stepper Motor With Certification Power Supplies Electrical Dc Motor

Name: 76mm NEMA 23 Stepper Motor With Certification Power Supplies Electrical Dc Motor
Brand: Casun
Price: 3.14 USD

Quality 76mm NEMA 23 Stepper Motor With Certification Power Supplies Electrical Dc Motor wholesale

Brand Name : Casun

Model Number : 57SHD4809-20B

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $3.14-$5

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 2.3N.m

Current : 3.1A

Motor Length : 76mm

Shaft : Milling Flat Shaft 20mm Length

Shaft Diameter : 6.35mm

Customized : The motor can be designed &manufactured with customized request.

Contact Now

76mm NEMA 23 Stepper Motor With Certification Power Supplies Electrical DC Motor

NEMA 23 Stepper Motor With Certification Power Supplies Electrical DC Motor. Capable of withstanding high loads, high temperature environments, and significant vibrations, suitable for many industrial and commercial applications. The stepper motor has a fast response speed and can achieve stable operation in a short period of time.

Key Features

High torque and high precision
Each model of our stepper motor is suitable for various applications
Our services are customizable and we welcome contract manufacturing
We actively pursue dealers
Your purchase includes a ten-year warranty, ensuring confidence

Motor Specifications

Step Angle	1.8°
Frame Size	57 mm
Number of Phase	2 Phase
Rated Current	3.1 A
Holding Torque	2.3 N.m
Resistance	1.4 ohm
Inductance	5.0 mH
Rotor Inertia	460 g-cm²
Motor Weight	1 kg
Number of Leads	4
Connection	Bipolar

Appearance

76mm NEMA 23 Stepper Motor With Certification Power Supplies Electrical Dc Motor

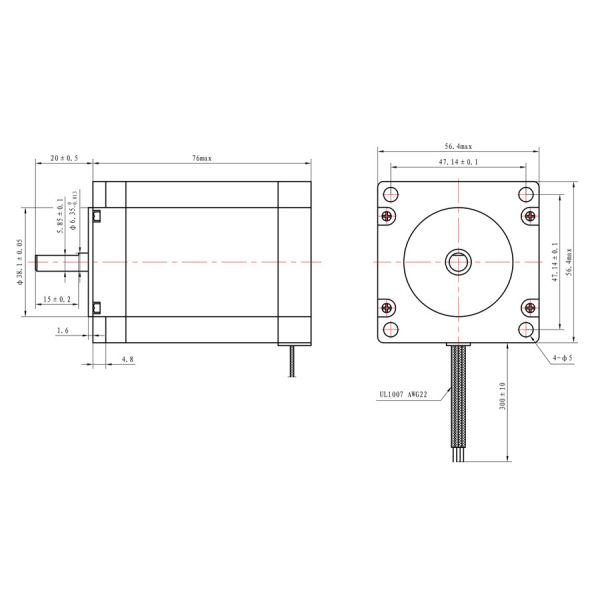

Dimensions

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Available Models

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6 N.m	1.8°	41 mm	D Shaft-21 mm	1.0 A
57SHD4415-21B	1.1 N.m	1.8°	54 mm	D Shaft-21 mm	3.0 A
57SHD4816-21B	2.0 N.m	1.8°	76 mm	D Shaft-21 mm	3.0 A
57SHD4913-21B	2.5 N.m	1.8°	83 mm	D Shaft-21 mm	3.0 A
57SHD4934-20B	3.0 N.m	1.8°	100 mm	D Shaft-20 mm	3.0 A

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Available Options

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements.
